Immediate Loading in an Atrophied Maxilla
The patient is a non smoking 74-year-old female, with a medical background of hypertension, diabetes and TIA in the past. She is taking anti coagulants. She has a fixed prothesis in the lower mandible, a removable upper denture and suffers from the inconvenience. The denture is supported by 4 implants with severe bone loss due to implantitis. Teeth #25 (13) and #26 (14) still remain.

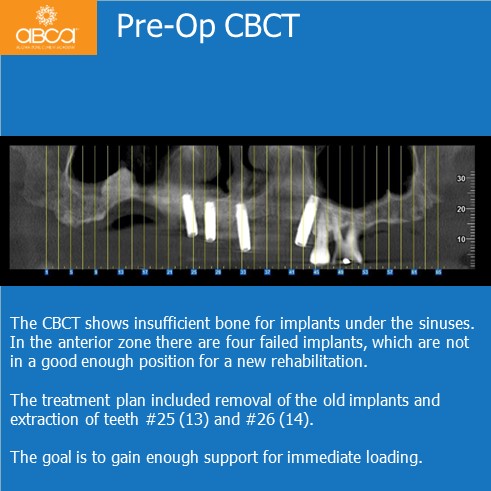

The CBCT shows insufficient bone for implants under the sinuses. In the anterior zone there are four failed implants, which are not in a good enough position for a new rehabilitation.
The treatment plan included removal of the old implants and extraction of teeth #25 (13) and #26 (14).
The goal is to gain enough support for immediate loading.

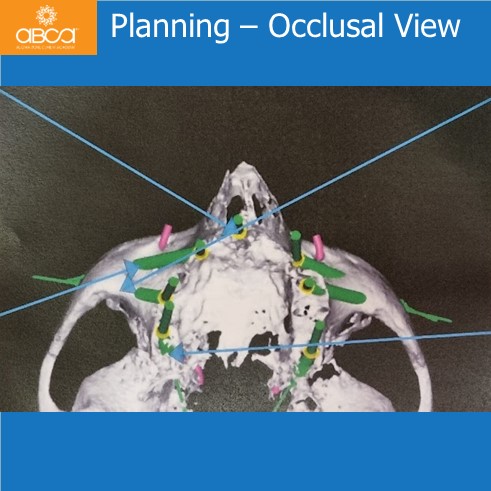

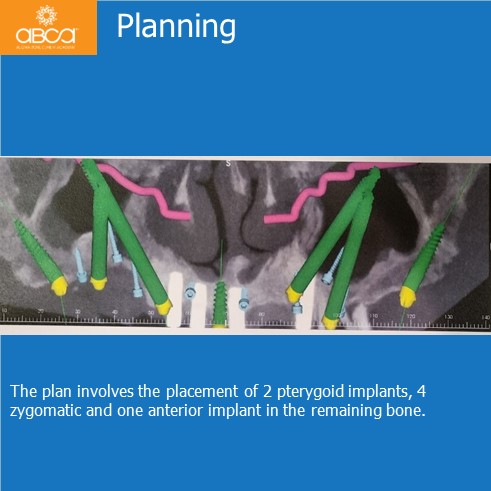

The plan involves the placement of 2 pterygoid implants, 4 zygomatic and one anterior implant in the remaining bone. Bond ApatiteŽ filling the bone defects, for enlarging the bone width and covering the zygomatic implants buccally in order to achieve sufficient width around the implants and long term soft tissue health.
